Detalhes do produto:
|
| Type: | Filling Machine | Color: | white |
|---|---|---|---|
| Aplicação: | Médico, & da maquinaria; Hardware | Tipo do tampão: | plástico |
| Material: | plastic | Circunstância: | Novo |
| Tipo conduzido: | Pneumático | Dimension(l*w*h): | Depends on the machine model |
| Uso: | presentes da oferta para vender | O serviço pós-venda forneceu: | Coordenadores disponíveis para prestar serviços de manutenção no ultramar à maquinaria |
| Escala de enchimento: | 2-50ml 10-150ml 30-300ml 50-500ml 100-1000ml | Poder: | 1kw |
| Realçar: | Série de T900M Thermo King T,-18 rei Thermo Célsio T Series,Refrigeração de T900M Thermo King Container |
||
product ranges Thermo King T Series refrigerated transport
product Introductionn:
| SPECIFICATIONS T-600M T-700M T-800M T-900M T-1000M T-1100M | |||||||
| REFRIGERATION CAPACITY: SYSTEM NET COOLING CAPACITY AT 30°C AMBIENT TEMPERATURE UNDER A.T.P. CONDITIONS | |||||||
|
Engine Power (W) |
0℃ | 6,000 | 6,550 | 7,600 | 8,050 | 9,150 | 10,600 |
| -20℃ | 3,700 | 4,000 | 4,300 | 4,500 | 5,450 | 5,700 | |
|
Electric Stand-by (W) |
0℃ | 3,700 | 4,600 | 5,900 | 6,200 | 6,400 | 6,720 |
| -20℃ | 2,600 | 3,200 | 3,300 | 3,470 | 4,200 | 4,410 | |
| HEATING CAPACITY: BOX TEMPERATURE 2℃, AMBIENT TEMPERATURE -18℃ | |||||||
| Engine power(W) | 3,100 | 3,100 | 3,100 | 3,100 | 4,100 | 4,100 | |
| Engine power and Water-heating(optional)(W) | 6,300 | 6,300 | 6,300 | 6,300 | 7,300 | 7,300 | |
| AIRFLOW: ON HIGH SPEED ENGINE OPERATION | |||||||
| Airflow volume @ 0 Pa static pressure (m3/h) | 2,700 | 2,700 | 2,700 | 2,700 | 3,200 | 3,200 | |
| WEIGHT: NOT INCLUDES BATTERY | |||||||
| Model 30: cooling and heating on engine operation (kg) | 443 | 440 | 443 | 440 | 461 | 457 | |
| Model 50: cooling and heating on engine and stand-by operation (kg) | 468 | 465 | 468 | 465 | 510 | 505 | |
| ENGINE: LOW EMISSIONS, 3 CYLINDER, LIQUID COOLED | |||||||
| Model | TK 370 | TK 370 | TK 370 | TK 370 | TK 376 | TK 376 | |
| Rating (kW) | 11.2 | 11.2 | 11.2 | 11.2 | 14.6 | 14.6 | |
| Maintenance interval (hr) | 2,000 | 2,000 | 2,000 | 2,000 | 2,000 | 2,000 | |
| COMPRESSOR: LIGHTWEIGHT ALUMINIUM ALLOY | |||||||
| Model | X214 | X214 | X214 | X214 | X426 C5 | X426 C5 | |
| Displacement (CC) | 228 | 228 | 228 | 228 | 426 | 426 | |
| ELECTRIC STAND-BY OPTION | |||||||
| Voltage / Phase / Frequency (V/Ph/Hz) | 380V/3Ph/50Hz | ||||||
| Rating (kW) | 4.5 | 4.5 | 4.5 | 4.5 | 7.5 | 7.5 | |
| REFRIGERANT: R-404A ZERO OZONE DEPLETION POTENTIAL (ODP), INTERNATIONALLY APPROVED | |||||||
| Charge (kg) | 3.6 | 3.0 | 3.9 | 3.0 | 4.1 | 3.0 | |

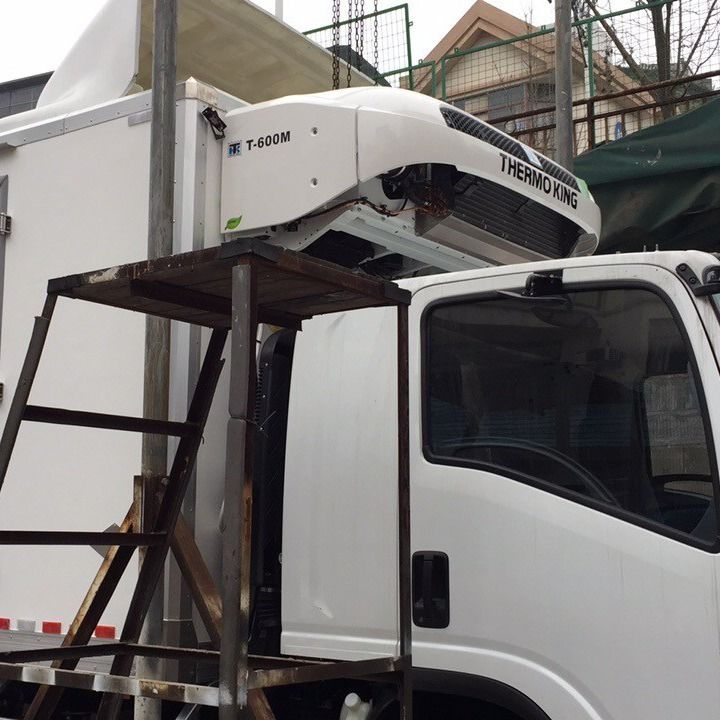

.T-600M
.T-700M
.T-800M
.T1000M ,T-1100M
1. New intuitive interface
The new TSR in-cab interface displays all information in clear symbols; It doesn’t matter what language you
speak. This increases ease-of-use and reduces the risk of operator errors.
.
2. Fuel savings
The TSR includes features that improve fuel savings such as:
• Cycle-SentryTM mode
• Fuel Saver Mode
New intuitive interface
The new TSR in-cab interface displays all information in clear symbols; It doesn’t matter what language you
speak. This increases ease-of-use and reduces the risk of operator errors.
T-Series Dimension(mm):
